Multimodal Data Flow

A TuyaOpen AI device is multimodal: it takes in speech, text, camera images, and device/sensor data, and responds with speech, on-screen text, and actions. This page categorizes those four modalities and shows how each one travels between the hardware (mic, speaker, camera, display, sensors), the on-device software (ai_components), and the Tuya AI cloud.

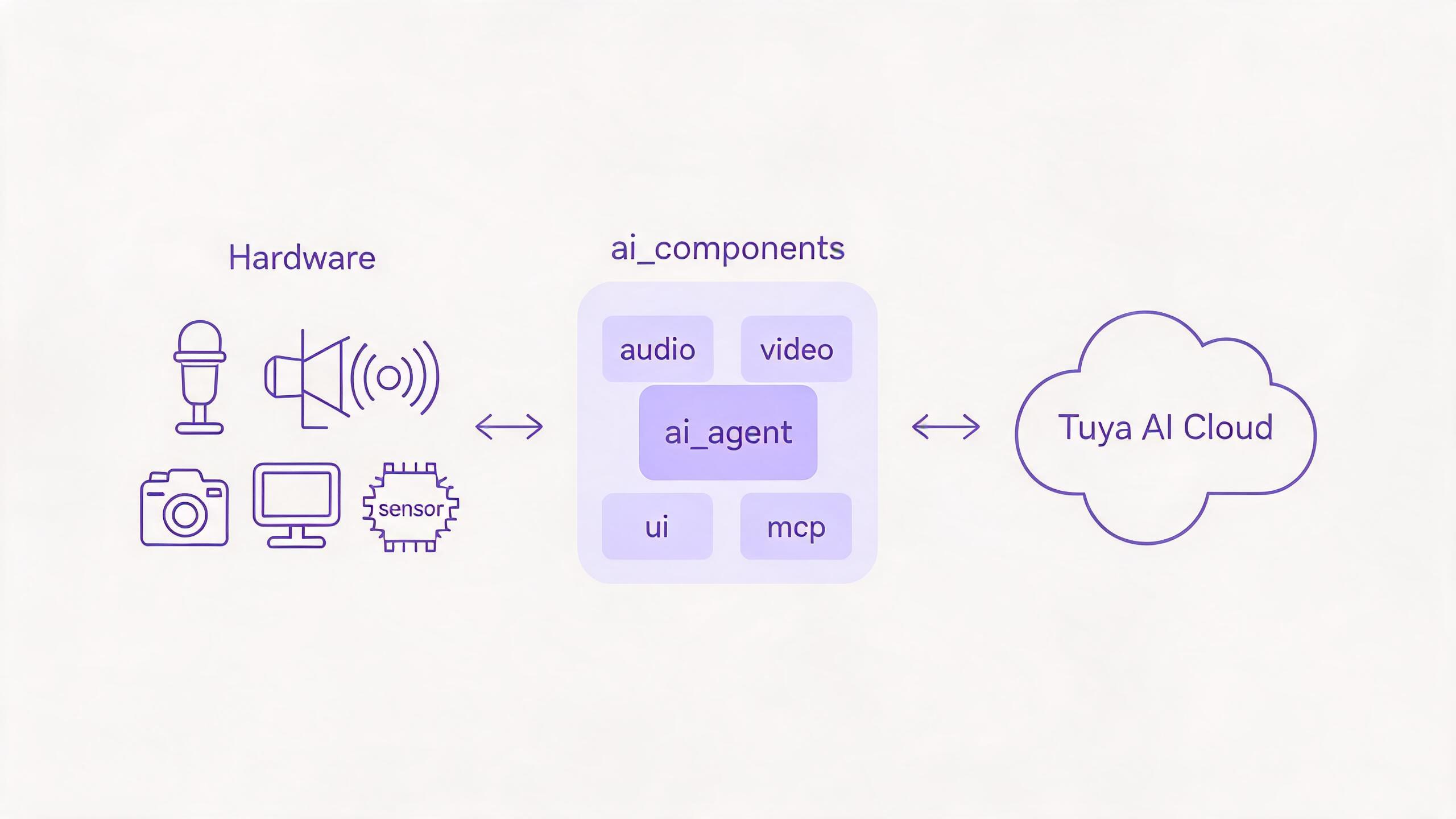

On-device AI pipeline: hardware peripherals connect through the ai_components software layer and ai_agent to the Tuya AI cloud

The three-layer path

Every modality follows the same path, and ai_agent is the single bridge to the cloud. Each modality module owns one class of peripheral and hands its data to — or receives it from — the agent.

You enable only the modalities your product needs in Kconfig (ENABLE_COMP_AI_*); disabled modules are not compiled in.

1. Audio — voice in, voice out

The core modality for a voice assistant.

In: microphone → ai_audio_input → Voice Activity Detection (VAD) — manual (a button press) or automatic (voice detection) — slices the speech, which ai_agent uploads to cloud ASR. Wake-word listening is driven by the Wakeup chat mode.
Out: cloud TTS and music → ai_audio_player → decode and resample → speaker.
Hardware: microphone, speaker, and a button for press-to-talk.
Components: Audio input, Audio player.

2. Vision — images in, preview out

In: camera → ai_video_input captures a JPEG frame (ai_video_get_jpeg_frame) → ai_agent_send_image uploads it to cloud vision for visual Q&A or image understanding.
Out / preview: live camera frames render locally through the video display callback; cloud-pushed images stream in through ai_picture.
Hardware: camera, display.
Components: Video input.

3. Text — typed or recognized in, rendered out

In: ai_agent_send_text sends a string directly; spoken input also comes back as ASR text.
Out: the NLG reply streams back token by token, and ai_ui renders it in your chosen style (WeChat-style bubbles, chatbot, or OLED).
Hardware: display (and serial, for the serial chatbot demo).
Components: AI Agent, UI management.

4. Sensory / device data — state in, actions out

This is how the cloud AI perceives and controls the physical device.

The AI reads device state and triggers actions through MCP tools exposed by ai_mcp: query device information, switch chat mode, take a photo, adjust volume — plus any custom tool you register for your own sensors and actuators.
Arbitrary byte payloads can also be uploaded with ai_agent_send_file.
Hardware: sensors, actuators, GPIO — reached through your MCP tool implementations.
Components: MCP server, MCP tools.

Where each modality is handled

Modality	In (hardware → cloud)	Out (cloud → hardware)	Components
Audio	mic → VAD → agent	TTS / music → player → speaker	`ai_audio_input`, `ai_audio_player`
Vision	camera → JPEG → agent	preview / pushed image → display	`ai_video_input`, `ai_picture`
Text	`send_text` / ASR	NLG stream → UI → display	`ai_agent`, `ai_ui`
Sensory / device	MCP tool reads, `send_file`	MCP tool actions	`ai_mcp`

note

All four modalities share one cloud session through ai_agent. The chat modes decide when the device listens and uploads; the agent decides how data reaches the cloud; the cloud decides what comes back.
