tkl_pwm | PWM Driver

The TKL PWM interface generates a pulse-width-modulated signal on a hardware channel and reads pulse timing back through input capture. You configure a channel's polarity, duty cycle, and frequency, then start, adjust, or stop the output at runtime. Channels are addressed by TUYA_PWM_NUM_E, starting at TUYA_PWM_NUM_0.

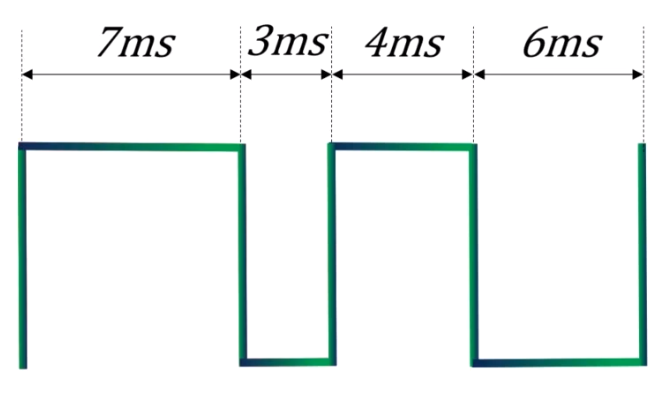

A PWM signal encodes an analog value as the ratio of high time to period (the duty cycle). For example, with a 10 ms period, a 7 ms high time is a 70% duty cycle and a 4 ms high time is a 40% duty cycle. Adjusting the duty cycle changes the effective analog output.

tkl_pwm_init

OPERATE_RET tkl_pwm_init(TUYA_PWM_NUM_E ch_id, const TUYA_PWM_BASE_CFG_T *cfg);

Initializes a PWM channel with the given polarity, duty cycle, and frequency.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index, starting at TUYA_PWM_NUM_0.
cfg	const TUYA_PWM_BASE_CFG_T *	Channel configuration.

The configuration structure is:

typedef struct {
    TUYA_PWM_POLARITY_E polarity;
    TUYA_PWM_COUNT_E    count_mode;
    // pulse duty cycle = duty / cycle; e.g. duty = 5000, cycle = 10000 -> 50%
    uint32_t            duty;
    uint32_t            cycle;
    uint32_t            frequency; // Hz
} TUYA_PWM_BASE_CFG_T;

polarity selects the active level:

Value	Description
TUYA_PWM_NEGATIVE	Low-level output
TUYA_PWM_POSITIVE	High-level output

count_mode selects the counter mode:

Value	Description
TUYA_PWM_CNT_UP	Up counting (default)
TUYA_PWM_CNT_UP_AND_DOWN	Up-and-down counting, for complementary duplex mode

duty and cycle set the duty ratio as duty / cycle. frequency is the output frequency in Hz.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_deinit

OPERATE_RET tkl_pwm_deinit(TUYA_PWM_NUM_E ch_id);

Deinitializes a PWM channel. Stops any ongoing output and releases the channel's software and hardware resources.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_start

OPERATE_RET tkl_pwm_start(TUYA_PWM_NUM_E ch_id);

Starts output on a PWM channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_stop

OPERATE_RET tkl_pwm_stop(TUYA_PWM_NUM_E ch_id);

Stops output on a PWM channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_multichannel_start

OPERATE_RET tkl_pwm_multichannel_start(TUYA_PWM_NUM_E *ch_id, uint8_t num);

Starts several PWM channels together for synchronized combined output, for cases with strict timing requirements.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E *	Array of channel indices to start.
num	uint8_t	Number of channels in the array.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_multichannel_stop

OPERATE_RET tkl_pwm_multichannel_stop(TUYA_PWM_NUM_E *ch_id, uint8_t num);

Stops several PWM channels together.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E *	Array of channel indices to stop.
num	uint8_t	Number of channels in the array.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_duty_set

OPERATE_RET tkl_pwm_duty_set(TUYA_PWM_NUM_E ch_id, uint32_t duty);

Sets the duty cycle of a channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
duty	uint32_t	Duty cycle, used as duty / cycle.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_frequency_set

OPERATE_RET tkl_pwm_frequency_set(TUYA_PWM_NUM_E ch_id, uint32_t frequency);

Sets the output frequency of a channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
frequency	uint32_t	Output frequency in Hz.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_polarity_set

OPERATE_RET tkl_pwm_polarity_set(TUYA_PWM_NUM_E ch_id, TUYA_PWM_POLARITY_E polarity);

Sets the output polarity of a channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
polarity	TUYA_PWM_POLARITY_E	TUYA_PWM_NEGATIVE or TUYA_PWM_POSITIVE.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_info_set

OPERATE_RET tkl_pwm_info_set(TUYA_PWM_NUM_E ch_id, const TUYA_PWM_BASE_CFG_T *info);

Replaces the full configuration of a channel, so you can change polarity, duty cycle, and frequency at runtime and restart the channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
info	const TUYA_PWM_BASE_CFG_T *	New channel configuration (see tkl_pwm_init).

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_info_get

OPERATE_RET tkl_pwm_info_get(TUYA_PWM_NUM_E ch_id, TUYA_PWM_BASE_CFG_T *info);

Reads the current configuration of a channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
info	TUYA_PWM_BASE_CFG_T *	Output: the channel configuration.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_cap_start

OPERATE_RET tkl_pwm_cap_start(TUYA_PWM_NUM_E ch_id, const TUYA_PWM_CAP_IRQ_T *cfg);

Starts PWM input capture mode on a channel, measuring pulse timing on the input signal.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.
cfg	const TUYA_PWM_CAP_IRQ_T *	Capture configuration.

The capture configuration structure is:

typedef struct {
    TUYA_PWM_CAPTURE_MODE_E cap_mode;      // capture mode
    TUYA_PWM_POLARITY_E     trigger_level; // trigger edge
    uint32_t                clk;           // sampling rate of the capture signal
    TUYA_PWM_IRQ_CB         cb;            // capture callback
    void                   *arg;           // argument passed to the callback
} TUYA_PWM_CAP_IRQ_T;

cap_mode selects the capture mode:

Value	Description
TUYA_PWM_CAPTURE_MODE_ONCE	Single trigger
TUYA_PWM_CAPTURE_MODE_PERIOD	Repeated trigger

trigger_level selects the trigger edge:

Value	Description
TUYA_PWM_NEGATIVE	Falling edge
TUYA_PWM_POSITIVE	Rising edge

clk is the sampling clock for the captured signal. cb is the capture callback, and arg is passed to it:

typedef void (*TUYA_PWM_IRQ_CB)(TUYA_PWM_NUM_E port, TUYA_PWM_CAPTURE_DATA_T data, void *arg);

typedef struct {
    uint32_t            cap_value; // captured data
    TUYA_PWM_POLARITY_E cap_edge;  // capture edge: TUYA_PWM_NEGATIVE = falling, TUYA_PWM_POSITIVE = rising
} TUYA_PWM_CAPTURE_DATA_T;

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

tkl_pwm_cap_stop

OPERATE_RET tkl_pwm_cap_stop(TUYA_PWM_NUM_E ch_id);

Stops PWM input capture mode on a channel.

Parameter	Type	Description
ch_id	TUYA_PWM_NUM_E	PWM channel index.

Returns OPRT_OK on success. For other values, see tuya_error_code.h.

Example

Start a 50% duty cycle output, adjust the duty cycle at runtime, then stop and deinitialize the channel:

void tuya_pwm_test(void)
{
    OPERATE_RET ret;
    TUYA_PWM_BASE_CFG_T cfg = {
        .polarity = TUYA_PWM_POSITIVE,
        .duty = 1000,
        .cycle = 10000,
        .frequency = 1000,
    };

    ret = tkl_pwm_init(TUYA_PWM_NUM_0, &cfg);
    if (ret != OPRT_OK) {
        return;
    }

    ret = tkl_pwm_start(TUYA_PWM_NUM_0);
    if (ret != OPRT_OK) {
        return;
    }
    tkl_system_delay(5000);

    ret = tkl_pwm_info_get(TUYA_PWM_NUM_0, &cfg);
    if (ret != OPRT_OK) {
        return;
    }
    if (cfg.duty != 5000) {
        cfg.duty = 5000;
    }
    ret = tkl_pwm_info_set(TUYA_PWM_NUM_0, &cfg);
    tkl_system_delay(5000);

    ret = tkl_pwm_stop(TUYA_PWM_NUM_0);
    if (ret != OPRT_OK) {
        return;
    }
    ret = tkl_pwm_deinit(TUYA_PWM_NUM_0);
    if (ret != OPRT_OK) {
        return;
    }
}
